Handles & Hardware BRITON 2700 COMMERCIAL CAM ACTION DOOR CLOSER

The Briton 2700 Series incorporates cam action technology to reduce the resistance encountered when opening fire or smoke barrier doors.

The reduced force required to open fire doors makes entering and exiting buildings much easier for all users – including the elderly, those with physical disabilities and small children.

In contrast to a conventional rack and pinion door closer, the linear cam action principle is extremely efficient. The initial opening force decreases as the door opens, and the closer retains power and control to close the door afterwards.

The Briton 2700 Series offers easy opening and reliable closing, while meeting accessibility standards.

Fire Rated: Tested on fire door assemblies in accordance with Australian Standards, refer fire door manufacturer for specific approval details

Handing	Non-handed
Models	Push and Pull Mounting
Strength	Adjustable strength 1 to 5
Arm type	Track
Max open angle	180° (pull side)
Max door weight	40kg – 100kg
Min / Max door width	850mm – 1250mm

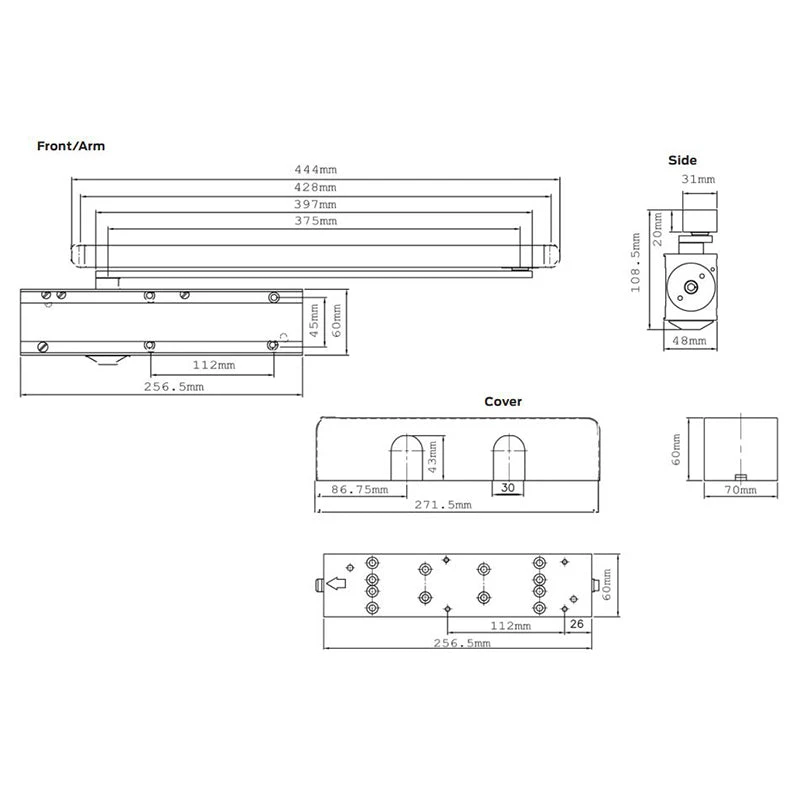

Dimension	270mm x 68mm x 60mm
Adjustments	Delayed action, backcheck, closing and latching speed
Options (sold separately)	80-120° hold open & cushion limit stay
